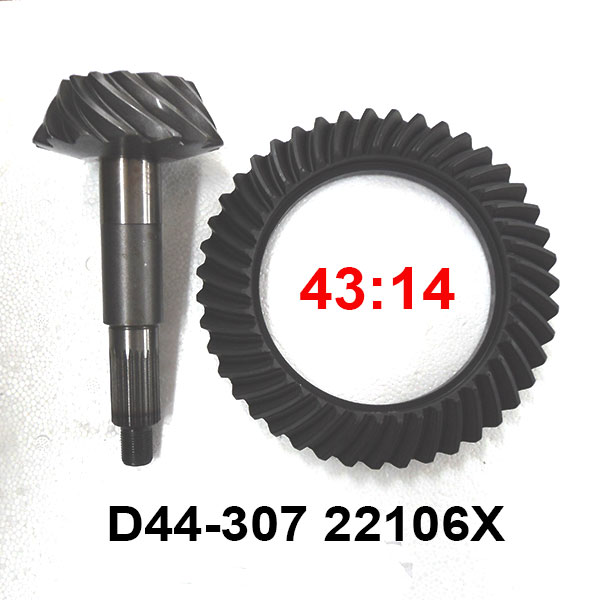

D44-307 Ring and Pinion for Chevrolet Chevy


Part Number: D44-307 22106X
Part Name: Crown and Pinion Gears / Ring and Pinion Gears Set
Differential Case: DANA 44
Ring and Pinion Ratio:3.07:1
Cover Bolts:10
Ring Gear Bolts:10
Pinion Spline Count:26
Ring Gear Rotation:Standard
Ring Gear Teeth:43
Pinion Gear Teeth:14
Ring Gear Diameter (in):8.500 in.
Pinion Shaft Diameter (in):1.376 in.

SKU: D44307 Category:

Material, MOQ, Lead Time

Material: 20CrMnTiH3 Chinese standard GB/T3077—1999; 8620H USA ASTM A304; 22CrMnTiH Chinese standard GB/T3077—1999.
Tolerance Control: Outer Diameter: ±0.005 mm. Length Dimension: ±0.05 mm
Production Capacity: Per month 30000 sets Crown Wheel and Pinion
MOQ: 10 Sets for NEW customer.
Lead Time: Depends on order. Usually 20 Days.
